SL

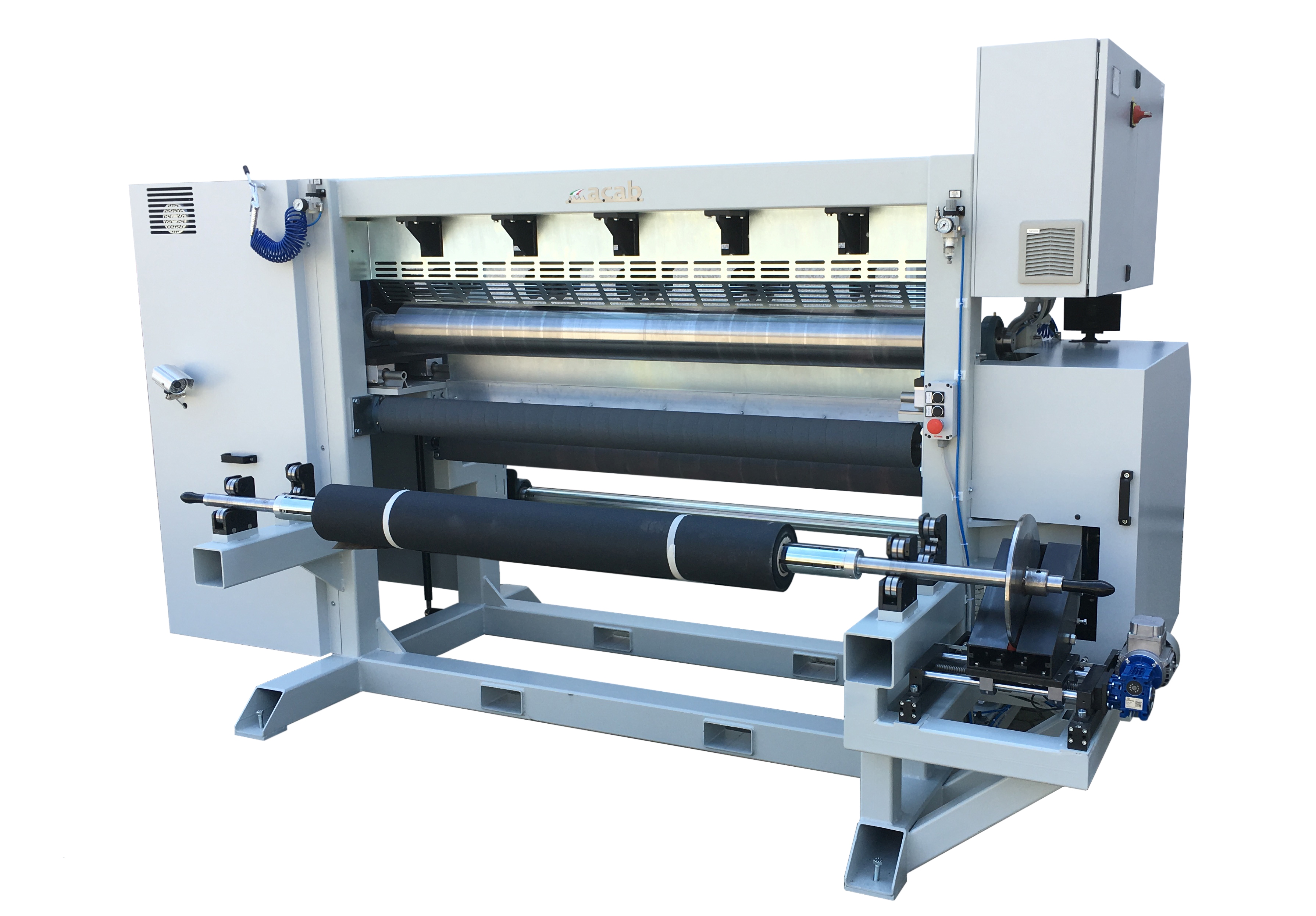

Jumbo rolls slitters

SL
  • ACAB Srl produces a range of jumbo rolls slitters that covers every application of coated and non-woven abrasives converting.
  • Capable to produce narrow rolls and / or wide rolls, thanks to cutting systems with independent knife holders or with fixed-spacing knives supporting shafts.
  • Suitable for any type of backing material (paper, cloth, combined, non-woven and film).
  • Maximum processing accuracy, efficiency and ease of use.
  • The most suitable jumbo rolls slitter will be configured according to the customer's technical needs.
  • Width of jumbo rolls: 1650 to 2050 mm
  • Unwinding station with brake, for control of material backtension.
  • Anvil shaft made of alloyed hardenend steel, driven by electric gearmotor.
  • For cutting width > 50 mm: independent knife-holder, freely positionable, pneumatically driven.
  • For cutting width < 50 mm: knife-holding shafts, with fixed spacing by means of spacers,  alberi di supporto coltelli, con coltelli a spaziatura fissa tramite distanziali, pneumatically driven.
  • Rewinding station with material tension control, by means of pneumatic clutches or brushless motors, according to the application.
  • Unwinding and rewinding shafts, with pneumatic material clamping system.
  • Material alignment system, manual or automatic, according to the application.
  • Electronic meters counter with automatic stop, available upon request.
  • Transversal cutting system, manual or automatic, according to the application.
  • Lateral alternate movement of anvil shaft, available upon request.
SL
