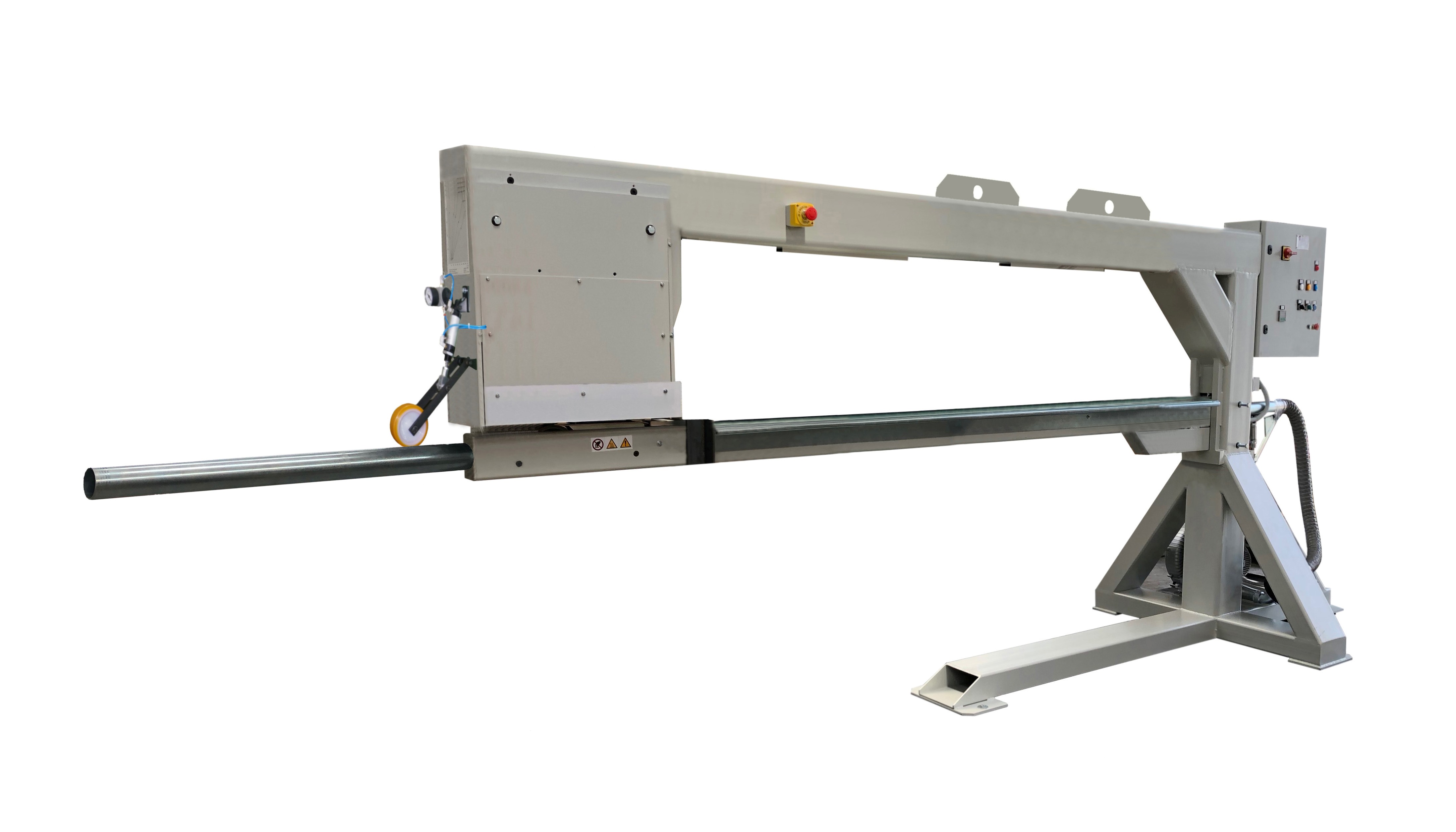

PR-W-440

Continuous (roller) press for wide belts

  • The deeply innovative concept of this machine allows the operator to make the splice assembling operation straight on the pressing beam of the machine, thus avoiding all the dead times due to further handling of the wide belt.
  • The belt is then inserted in the roller pressing station and passes through it.
  • The finished belt is finally delivered on the opposite side of the operator while he/she is already assembling the next belt.
  • Assembling arm with vacuum system for belt holding.
  • Belt feeding system, with toothed belt contrasted by heated metal plate, suitable also for "heavy material" belts, with pneumatic control of pressing force.
  • Pressing rubber coated wheel, pneumatically actuated, with contrasting metal wheel.
  • Adjustable feeding speed.
  • Adjustable working temperature of the heated plate.
  • Adjustable specific pressure on the joint.
  • Outlet guide roll with pneumatic activation cylinder (to keep the belts guided when it is nearly all past the pressing head).
  • Maximum length of the splice: 2600 mm (3500 mm available upon request).
