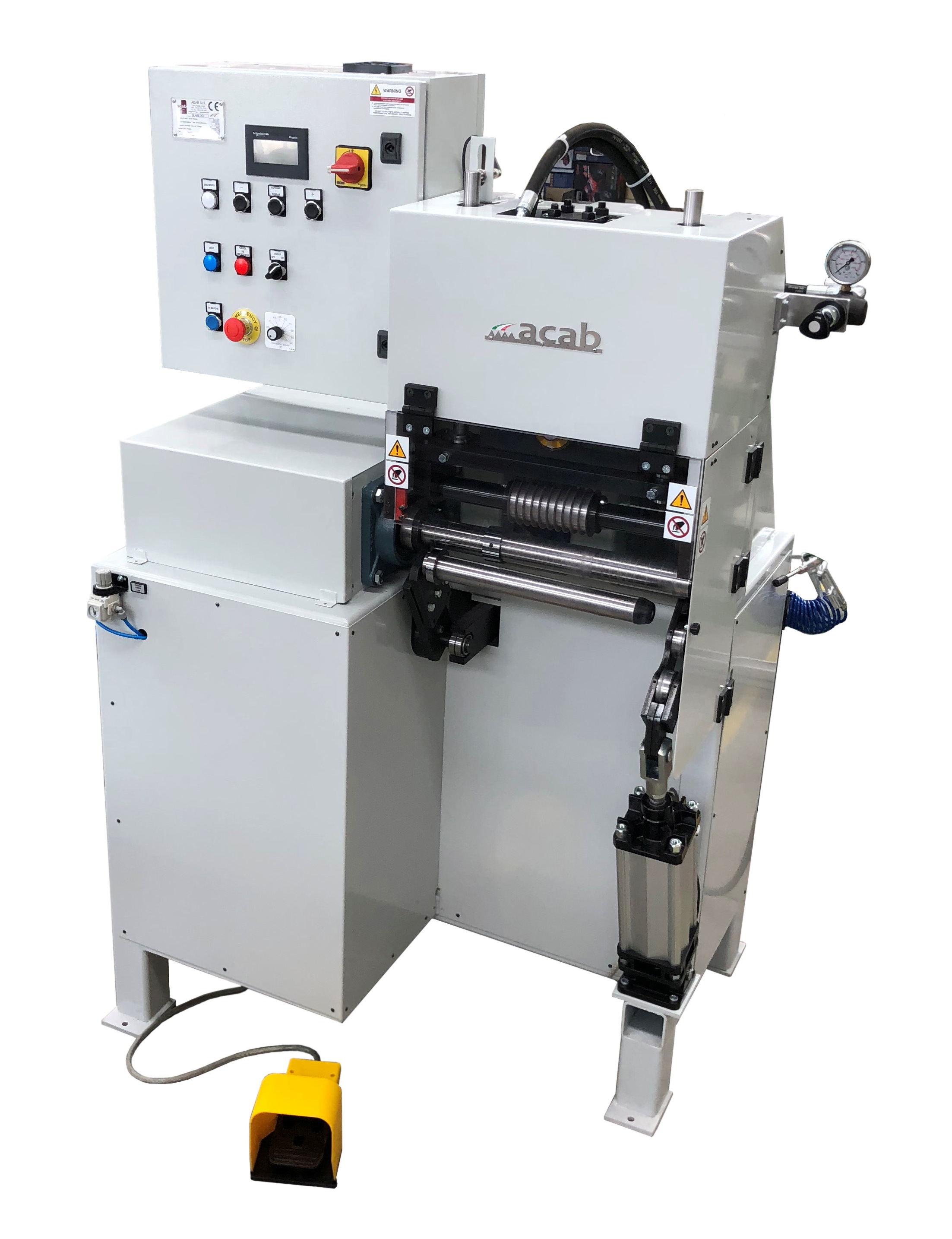

Robust re-slitter for abrasive “mini-belts”. High productivity.

  • Machine for slitting mini-belts in automatic mode.
  • Robust machine, capable of using up to 15 knives at the same time (e.g.: for cutting of 15 belts - 20mm wide - from a master belt 300mm wide, in one single cycle).
  • Hydraulic drive of the knives.
  • Direct drive of the knives by means of hydraulic cylinder, acting along linear guides (no rotation levers for multiplication of cutting force).
  • Automatic pneumatic stretching of the belt during the cutting cycle.
  • Automatic supporting of the cutting cylinder during the cutting cycle, to avoid deflection of the shaft and misalignment of the slit belts.
  • Cutting cylinder diam. 50mm, with interchangeable sleeves made of alloyed hardened steel, for easy maintenance.
  • Fully automatic cycle, managed by PLC: operator only has to load the master belt, start the cycle and remove the cut belts at the end of the cycle.
  • Maximum width of the belt to be slit: 300 mm
  • Minimum length of the belt to be slit: 280 mm ca.
  • Electronically adjustable cutting speed: 0 ÷ 50 m/min
  • Pneumatic stretching of the slit belt, with adjustable force.
  • Pedal control for activation of cutting cycle.
  • Anvil shaft with interchangeable alloyed and tempered steel bushes, Ø 50 mm
  • Adjustable hydraulic drive of the knives-holder.
  • Designed for standard HSS self-sharpening knives, Ø 76 × bore 40, thickness 0.7 mm (others available on request).
